KATOP 4.0ton CPCD40FR Diesel Forklift

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Name: KATOP 40ton CPCD40FR Diesel Forklift
Brand: KATOP
Price: 9800 USD

Brand Name : KATOP

Model Number : 40FR

Certification : CE SGS ISO

Place of Origin : Shandong

MOQ : 1 unit

Price : $9800-$10300

Supply Ability : 300units per month

Delivery Time : within 30days

Packaging Details : 5PCS/20’CNT; 10PCS/40’CNT

Load capacity : 4.0ton

Dimensions : 4100×1230×2110mm

Total weight : 4900kg

Engine model : 498BPG/4C6-65M engine

Engine power : 45/48kw

Contact Now

KATOP CPCD40FR 4.0Ton Forklift

Main Characteristics

♦ Powerful engine

♦ Low center of gravity, small turning radius, more stable and reliable

♦ Comfortable seat for long-time operation

♦ Safe overhead guard

♦ Rear light for working in the dark

♦ Dual air filter

♦ Streamline balance weight

♦ Side shifter is optional

♦ Optional mast: 2-stage 3.5m/4mmast; 3-stage4.5m/5m//6mmmast.

♦ Optional engine: EURO II China engine; DEUTZ-DACHAI engine; ISUZU engine;

YANMAR engine.

CPCD40FR Specifications:

General		Brand	KATOP
	1	Model		CPCD40FR
	2	Rated capacity	kg	4000
	3	Load center	mm	500
	4	Power type		Diesel
	5	Transmission		Hydraulic/Mechanical
Dimensions	6	Lifting height	mm	3000
	7	Free lifting height	mm	80
	8	Turning radius	mm	2720
	9	Overall length	mm	4100
	10	Overall width	mm	1230
	11	Overall height (mast lowered)	mm	2110
	12	Overall height (mast raised)	mm	4270
	13	Overall height (overhead guard)	mm	2110
	14	Fork length	mm	1220
	15	Fork width	mm	150
	16	Fork thickness	mm	50
Performance	17	Max. driving speed (with/without load)	km/h	18/20
	18	Max. lifting speed (with load)	mm/s	300
	19	Max. traction (with/without load)	kn	16.5/11.5
	20	Gradeability (with/without load)	%	15/20
	21	Tilting angles (forward/backward)	°	6/12
	22	Service weight	kg	4900
Engine	23	Engine model		498BPG/4C6-65M engine
	24	Power	kw	45/48
	25	Rated speed	rpm	2500/2450
	26	Displacement	L	3.168
	27	No. of cylinder		4
Wheel	28	Front overhang	mm	470
	29	Wheel base	mm	1900
	30	Front tread	mm	1060
	31	Rear tread	mm	970
	32	Front tire		250-15
	33	Rear tire		6.50-10

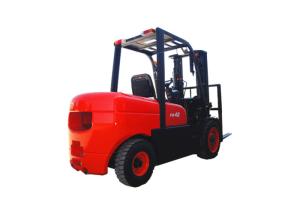

KATOP 4.0ton CPCD40FR Diesel Forklift Images
